Why a High Pressure Screw Compressor Is Essential for PET Packaging Lines

Polyethylene Terephthalate (PET) is the premier packaging choice for global beverage and pharmaceutical brands due to its lightweight properties, structural strength, and high clarity. However, producing these containers at blisteringly high speeds requires immense mechanical force. Deploying a specialized high pressure screw compressor is a foundational operational necessity for stretch blow molding. To secure the massive volumetric airflow needed for continuous production without compromising safety, global factories must partner with reliable, world-class oil free compressor suppliers. By integrating a highly efficient high pressure screw compressor into your production setup, you protect product safety, eliminate costly contamination, and secure steady, non-pulsing output.

The Core Challenge of PET Bottle Blowing: Force Meets Precision

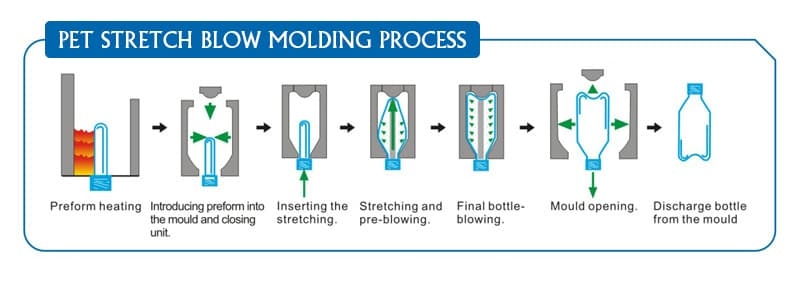

The production of industrial plastic bottles heavily utilizes stretch blow molding, a process where a heated, softened PET preform is enclosed inside a custom split mold. A stretch rod mechanically extends the preform lengthwise, while ultra-fast pulses of compressed air are injected inside to inflate the plastic outward until it conforms perfectly to the inner contours of the mold.

This manufacturing process occurs at remarkable speeds, often producing tens of thousands of bottles per hour on a single packaging line. To achieve flawless wall uniformity, crisp thread profiles, and structurally rigid base stars, the air injection requires two distinct stages:

• Pre-Blowing Stage: Lower pressure air (typically 6 bar to 10 bar) is introduced to gently initiate the stretching process without tearing the hot polymer material.

• Final Blowing Stage: High-pressure air (ranging from 20 bar to 40 bar) is immediately injected to slam the expanding plastic against the chilled mold walls.

If the air pressure drops by even a fraction of a bar during the critical final blowing stage, the expanding plastic will fail to fill the intricate corners of the mold. This results in deformed bases, cloudy bottle walls, and massive batches of rejected products. A robust high pressure screw compressor provides the rigid, unwavering airflow and rapid pressure recovery required to feed these high-speed packaging lines without experiencing pressure drops. For this reason, global procurement managers look for specialized oil free compressor suppliers who can deliver certified high-bar machinery capable of handling continuous, heavy-duty duty cycles.

Piston vs. Screw Technology: The Modern Industrial Shift

Historically, multi-stage reciprocating piston compressors were the standard choice for achieving high-pressure ranges like 40 bar. However, traditional piston designs introduce inherent mechanical limitations that conflict with the demands of modern, high-speed production lines:

• Pulsing Discharges: Piston compressors rely on a stop-and-start stroke, causing heavy cyclical vibrations and pressure fluctuations that force plants to install massive, expensive dampening storage tanks.

• High Maintenance Costs: These machines feature an array of high-wear parts—including intake/discharge valves, piston rings, packing seals, and rider bands—requiring frequent operational shutdowns for manual adjustments.

To overcome these bottlenecks, modern facilities are actively transitioning to rotary screw engineering. As the balanced internal screw rotors turn, they deliver air in a single, smooth, non-pulsing stream.

This rotary mechanism eliminates violent unbalanced forces, drastically reduces factory noise, and removes the need for heavy concrete anti-vibration foundations. Because a rotary high pressure screw compressor features fewer moving parts and zero high-wear contact valves, service intervals are greatly extended to maximize your plant's uptime. When evaluating potential oil free compressor suppliers, choosing advanced single-screw rotary solutions over outdated piston designs is a critical step for securing long-term operational savings.

To see how these technical specifications directly translate to the factory floor, consider the standard engineering requirements for high-output lines:

The Zero-Tolerance Threat of Oil Contamination

While maintaining exact pressure is vital for bottle shape, maintaining absolute air purity is vital for consumer safety and brand reputation. In the beverage and pharmaceutical packaging sectors, compressed air comes into direct contact with the internal surfaces of the container.

If your facility operates a standard oil-lubricated compressor, microscopic oil aerosols, vapors, and liquid carryover inevitably bypass downstream filtration systems over time. This oil contamination poses three catastrophic risks:

1. Product Spoilage: Microscopic oil droplets deposited inside a beverage or medicine bottle will alter product taste, compromise liquid purity, and introduce toxic residues.

2. Packaging Failures: Residual compressor oil interacts chemically with hot PET material during the blow molding phase. This chemical interaction weakens the polymer chain, causing stress cracking around the bottle base, which leads to leaking or exploding containers on store shelves.

3. Damaged Corporate Reputation: A single instance of oil contamination can cost a manufacturing brand millions in lost distribution, legal liabilities, and permanent damage to its market standing.

To completely mitigate these risks, factories cannot rely on standard filtration to clean oily air. They must source their equipment from dedicated oil free compressor suppliers who design systems that run entirely without oil inside the compression chamber.

The CMN Advantage: Setting the Global Benchmark for PET Blowing

As one of the world's leading air compressor manufacturer brands, CMN has consistently pioneered advancements in industrial single-screw technology. We recognize that stability and purity are the two non-negotiable requirements for global packaging companies.

CMN launched the world's first 40-bar oil-free screw air compressor featuring an advanced, water-lubricated air end. This milestone filled a critical international technological gap, replacing complex multi-stage piston setups with a streamlined rotary solution. Instead of using petroleum or synthetic oil to seal gaps and cool rotors, our water-lubricated compressor injects high-purity water directly into the single-screw compression chamber. Because the entire machine operates without a single drop of lubricating oil inside the chamber, the discharged air is inherently 100% oil-free (0 ppm).

We stand out among global oil free compressor suppliers because we do not rely on third-party assembly. More than 80% of each compressor's components are engineered and manufactured completely in-house. Our 58,000-square-meter state-of-the-art facility is equipped with over 50 ultra-precision CNC machines, ensuring that every screw rotor achieves flawless mechanical tolerances. By adopting a direct-drive, water-lubricated high pressure screw compressor from CMN, your production plant can cut energy consumption by up to 20%.

Our engineering team works hand-in-hand with procurement managers and technical engineers worldwide to deliver complete, integrated compressor solutions, including perfectly matched high-pressure air tanks, desiccant dryers, and ultra-fine filtration systems.

Conclusion

In the highly competitive world of high-speed PET packaging, your compressed air system directly determines your production speed, energy efficiency, and product safety. Relying on pulsing, high-maintenance piston machinery or partnering with standard oil-lubricated equipment vendors creates unnecessary operational vulnerabilities.

Upgrading to a dedicated high pressure screw compressor ensures a continuous, non-pulsing stream of high-bar air that matches the speed and precision of modern blow molding machinery. By filtering out general equipment vendors and choosing specialized, tier-one oil free compressor suppliers like CMN, your facility can eliminate oil contamination risks entirely, lower routine maintenance costs, and secure a sustainable, energy-efficient operation built for the future.

Ready to Upgrade Your PET Production Performance?

Maximize your packaging line's uptime and eliminate oil contamination risks today. Contact the technical engineering specialists at CMN—one of China's premier oil free compressor suppliers—to design your customized high-pressure oilless compressor layout and request a competitive quote.

Frequently Asked Questions (FAQ)

1. Why can't I use a standard 10-bar screw compressor for PET bottle blowing?

Standard 10-bar air compressors do not generate enough force to stretch and press expanding PET plastic completely into the outer corners of a blow mold. Final bottle blowing requires specialized systems capable of maintaining stable pressure between 20 bar and 40 bar to form rigid bases, clear walls, and precise thread details.

2. What makes premium oil free compressor suppliers different from standard compressor brands?

Premium oil free compressor suppliers specialize in engineering machines that use alternative sealing methods—such as high-purity water injection—instead of petroleum or synthetic oils inside the compression element. This guarantees 100% oil-free air delivery at the source, rather than relying on inline filters that can degrade over time.

3. Does a rotary high pressure screw compressor save more energy than a reciprocating piston compressor at 40 bar?

Yes. Piston compressors suffer from significant mechanical friction, heat losses, and energy drop-offs due to their pulsing, stop-and-start design. A rotary screw compressor provides smooth, continuous volumetric efficiency. Advanced single-screw systems can reduce overall factory energy consumption by up to 20%.

4. What matched post-treatment equipment is required for a PET packaging air line?

A complete high-pressure packaging system requires a properly rated high-pressure air receiver tank to buffer volumetric flow, along with a high-pressure refrigerated or desiccant dryer to remove ambient moisture, and ultra-fine particulate filters to eliminate dust from the air stream.
